Features:
- Intended for ventilation in residential and commercial premises
- Easy to clean and install
- Can be used with duct pipes
- Double Ball Bearing Motor
- Silent operation
- Auto cut off protection
- German Technology Exhaust Fan.
- Bathroom / Kitchen / Toilet / Home / Room / Hotel / industrial / commercial/ window ventilating fan
Available color :- White.
Sizes :-
Small :- WAD IL 10"
Medium :- WAD IL 15"
Master :- WAD IL 20"
Large :- WAD IL 25"
Extra Large :- WAD IL 31.5"

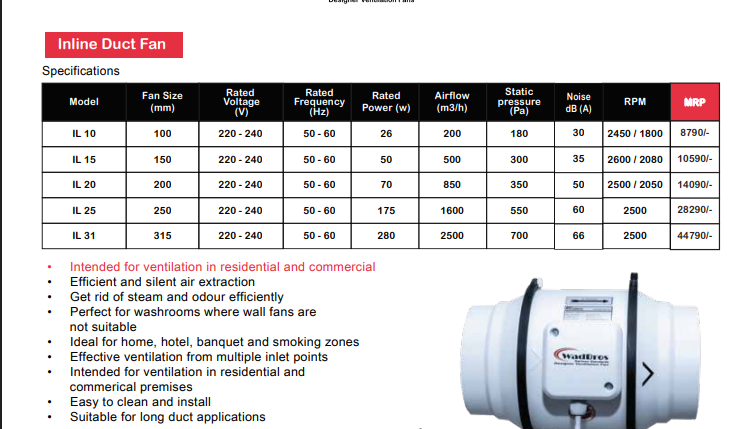

Specifications :- | |||||
Model & Sizes | WAD IL 10 | WAD IL 15 | WAD IL 20 | WAD IL 25 | WAD IL 31 |
Fan Size(mm) | 100 | 150 | 200 | 250 | 315 |
Rated Voltage(V) | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 |
Rated Frequency(Hz) | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
Rated Power(W) | 26 | 50 | 70 | 175 | 280 |
Air Delivery(m3/h) | 200 | 500 | 850 | 1600 | 2500 |
RPM | 2450/1800 | 2600/2080 | 2500/2050 | 2500 | 2500 |

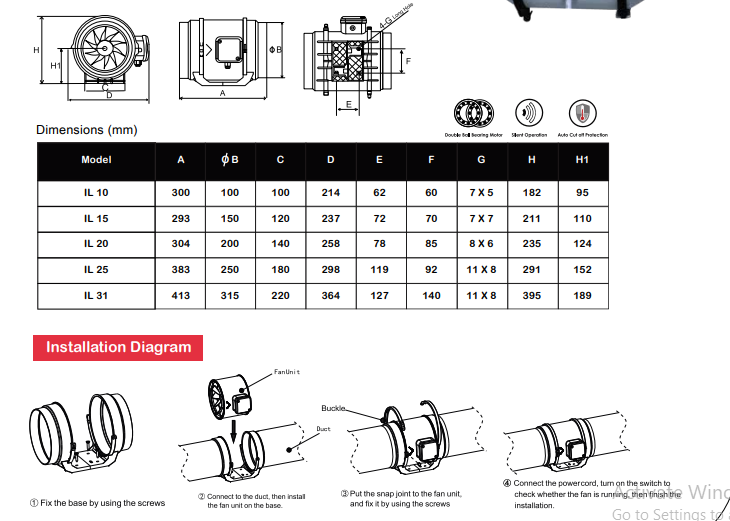

Dimensions :- | |||||||||
Model | A | B | C | D | E | F | G | H | H1 |
WAD IL 10 | 300 | 100 | 100 | 214 | 62 | 60 | 7X5 | 182 | 95 |
WAD IL 15 | 293 | 150 | 120 | 237 | 72 | 70 | 7X7 | 211 | 110 |
WAD IL 20 | 304 | 200 | 140 | 258 | 78 | 85 | 8X6 | 235 | 124 |
WAD IL 25 | 383 | 250 | 180 | 298 | 119 | 92 | 11X8 | 291 | 152 |
WAD IL 31 | 413 | 315 | 220 | 364 | 127 | 140 | 11X8 | 395 | 189 |
Please Note :- Product color may slightly vary due to photographic lighting effect.
